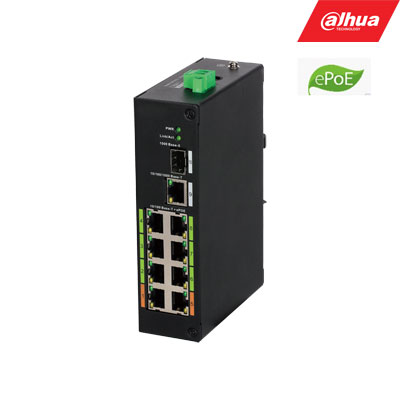

DH-LR2110-8ET-120 is a 8-Port ePoE switch, which is able to realize PoE
transmission over 800 meters Ethernet cable at the speed of 10Mbps,
or 300 meters at the speed of 100Mbps. Besides, it supports PoE and
PoC power supply technology, which has greatly simplified construction
and wiring. Dahua ePoE technology offer a new way to accomplish long
distance transmission between IP camera and network switch. It allows
more flexible surveillance system design, improves reliability and saves
construction and wiring cost.
Features:
• Supports long distance PoE transmission up to 800m with ePoE technology of Dahua
• Layer-two ePoE switch
• MAC auto study and aging, MAC address list capacity is 8K
• Conform IEEE802.3, IEEE802.3u, IEEE802.3ab/z and IEEE802.3X standards
• Supports IEEE802.3af, IEEE802.3at, Hi-PoE standard
• Industrial wide temperature design
• Port indicator light is to display the status of current transmission mode for the port, which includes IEEE, E100 and E10
Technical Specifications:
• Model DH-LR2110-8ET-120
Ethernet Port
• 1*1000 Base-X
• 1*10/100/1000 Base-T
• 8*10/100 Base-T(PoE power supply)
• PoE Power Consumption Port1,5=60W, Port2,3,4,6,7,8=30W, Total=120W
• PoE Protocol IEEE802.3af, IEEE802.3at, Hi-PoE
• Switching Capacity 8.8Gbps
• Packet Forwarding Rate 4.17Mpps
• Packet Buffer Memory 2.75Mb
• MAC Table Size 8K
• Flow Control Enable by default
• Application Humidity 10%~90%
• Power DC48~57V power adapter
• Lightning Protection Common Mode 4KV
• Differential Mode 2KV
• Working Temperature ?30°C~65°C
• Weight 0.59kg
• Dimension(W×D×H) 150mm×100mm×42mm
Transmission Performance:
ePoE switch supply voltage 48V, CAT5E/CAT6, max. DC resistance < 10O/100m
• Cable (m) 100, Bandwidth 100, PoE Load Capacity(W) 25.5, Hi-PoE Load Capacity (W) 53, Working Mode IEEE/E100
• Cable (m) 200, Bandwidth 100, PoE Load Capacity(W) 25.5, Hi-PoE Load Capacity (W) 33, Working Mode E100
• Cable (m) 300, Bandwidth 100, PoE Load Capacity(W) 19, Hi-PoE Load Capacity (W) 19, Working Mode E100
• Cable (m) 400, Bandwidth 10, PoE Load Capacity(W) 17, Hi-PoE Load Capacity (W) 17, Working Mode E10
• Cable (m) 500, Bandwidth 10, PoE Load Capacity(W) 13, Hi-PoE Load Capacity (W) 13, Working Mode E10
• Cable (m) 800, Bandwidth 10, PoE Load Capacity(W) 7, Hi-PoE Load Capacity (W) 7, Working Mode E100
ePoE switch supply voltage 53V, CAT5E/CAT6, max. DC resistance < 10O/100m
• Cable (m) 100, Bandwidth 100, PoE Load Capacity(W) 25.5, Hi-PoE Load Capacity (W) 53, Working Mode IEEE/E100
• Cable (m) 200, Bandwidth 100, PoE Load Capacity(W) 25.5, Hi-PoE Load Capacity (W) 47, Working Mode E100
• Cable (m) 300, Bandwidth 100, PoE Load Capacity(W) 25.5, Hi-PoE Load Capacity (W) 32, Working Mode E100
• Cable (m) 400, Bandwidth 10, PoE Load Capacity(W) 23, Hi-PoE Load Capacity (W) 26, Working Mode E10
• Cable (m) 500, Bandwidth 10, PoE Load Capacity(W) 10 Hi-PoE Load Capacity (W) 20, Working Mode E10
• Cable (m) 800, Bandwidth 10, PoE Load Capacity(W) 13, Hi-PoE Load Capacity (W) 13, Working Mode E10
