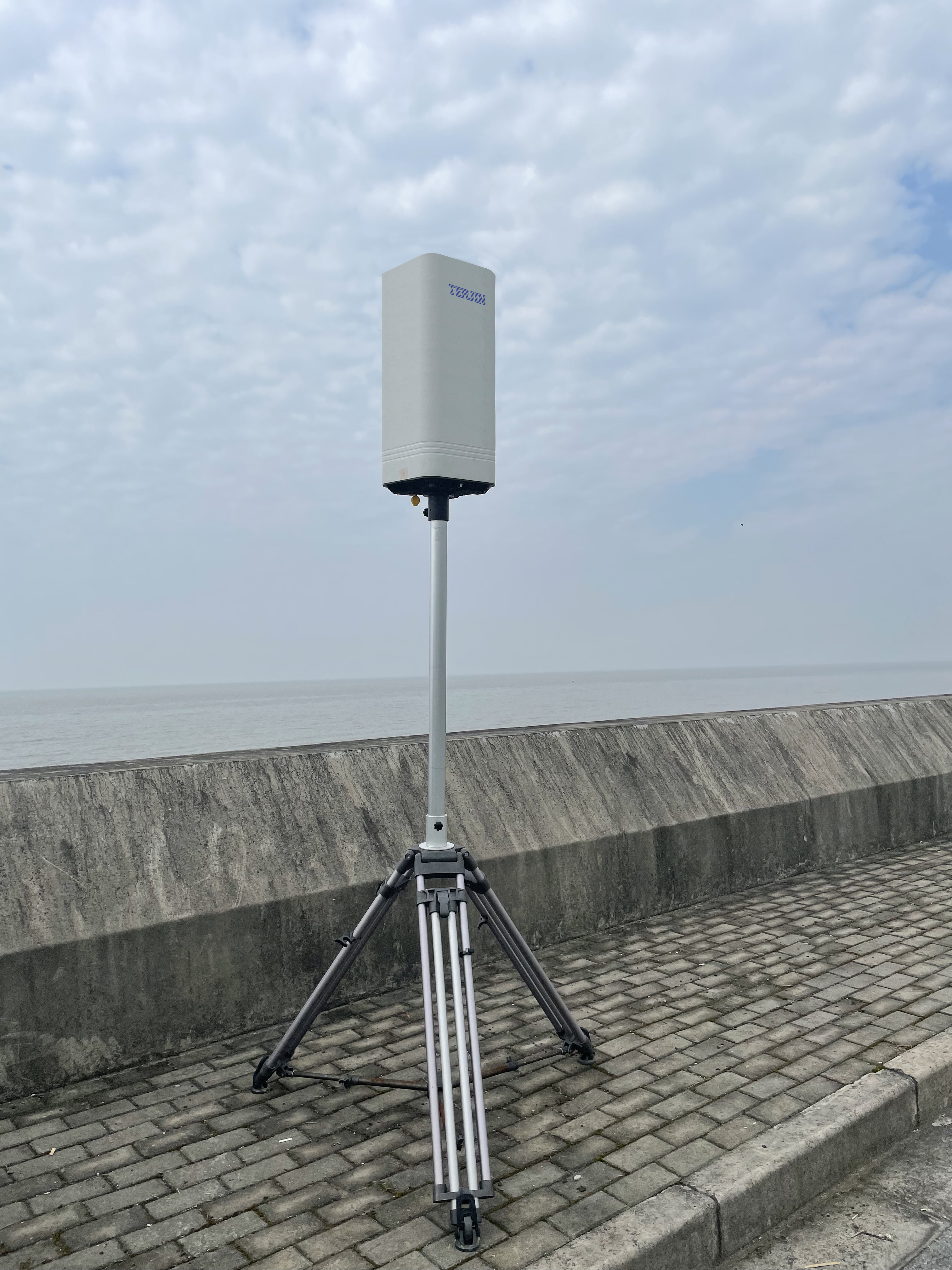

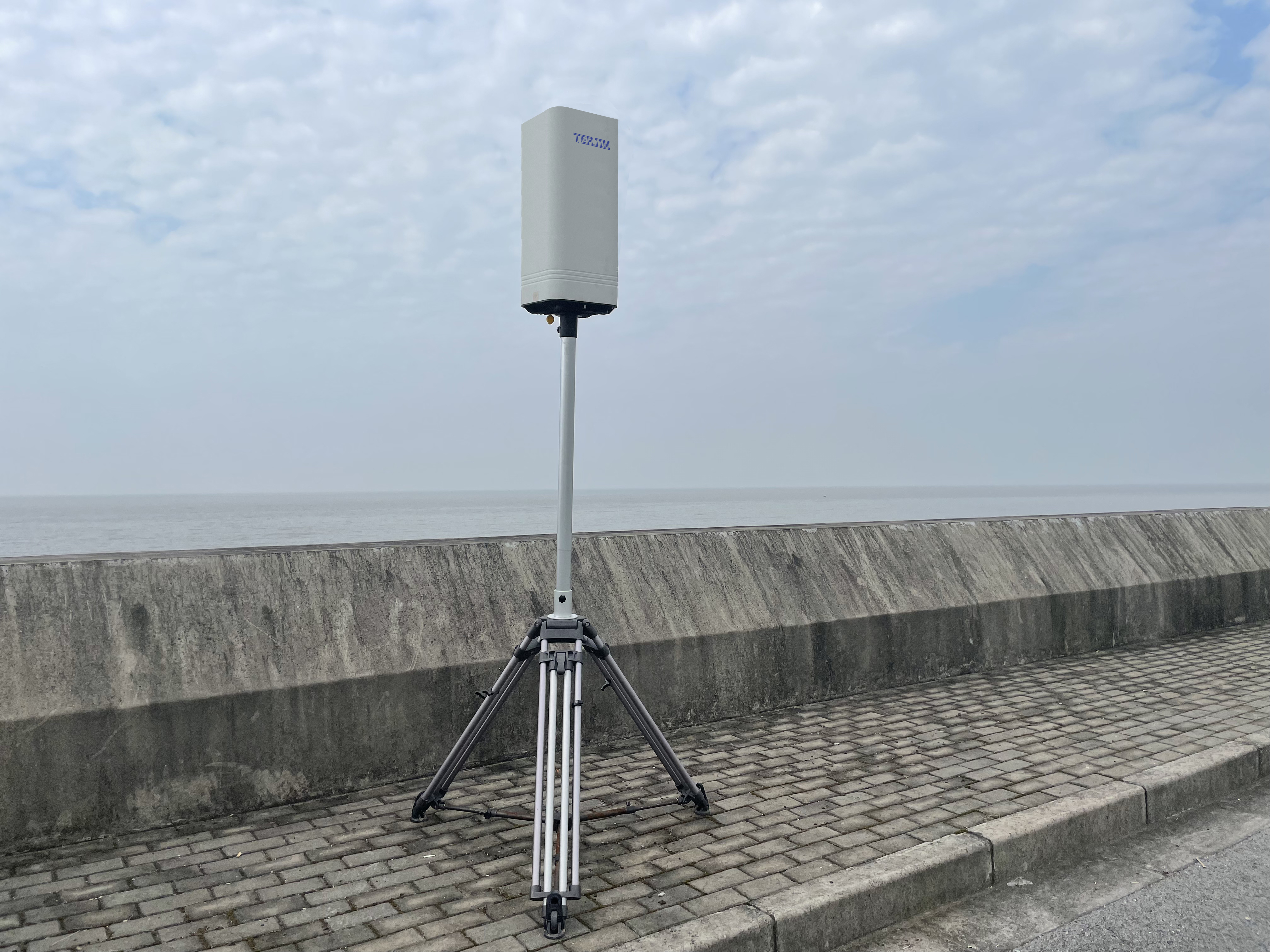

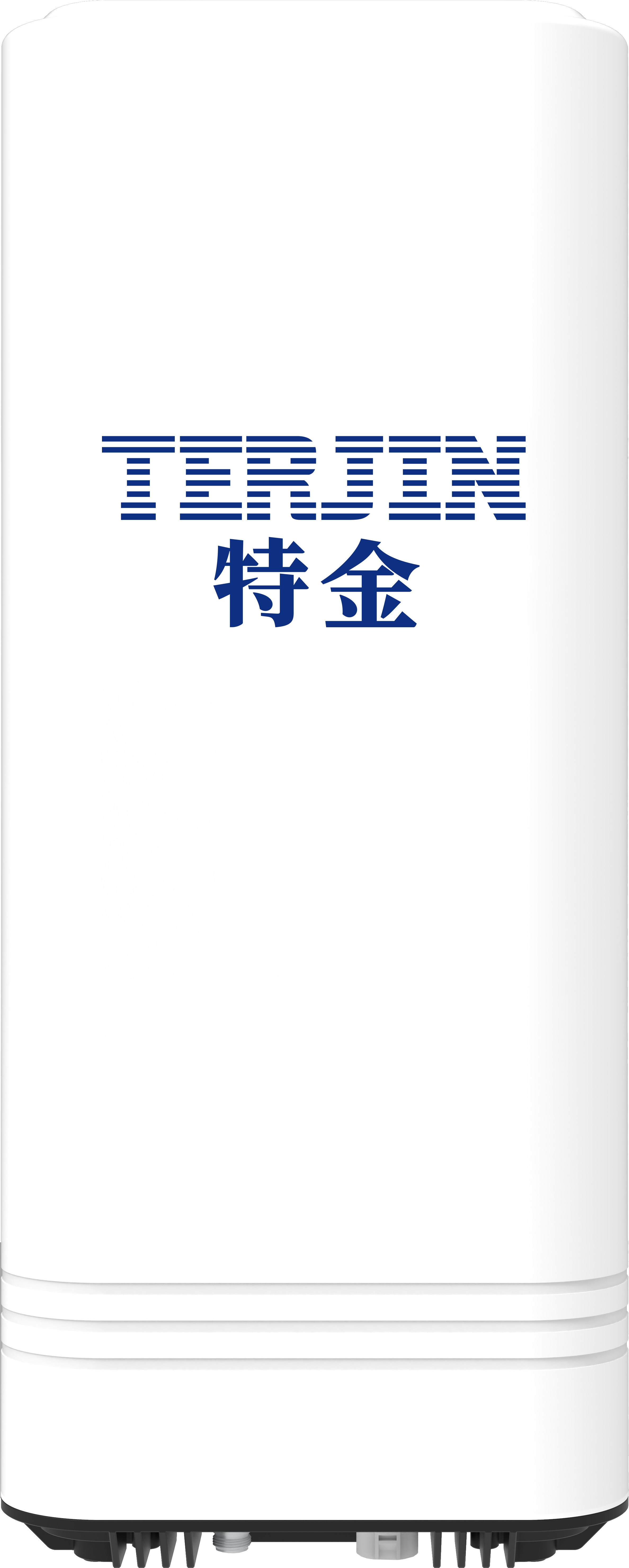

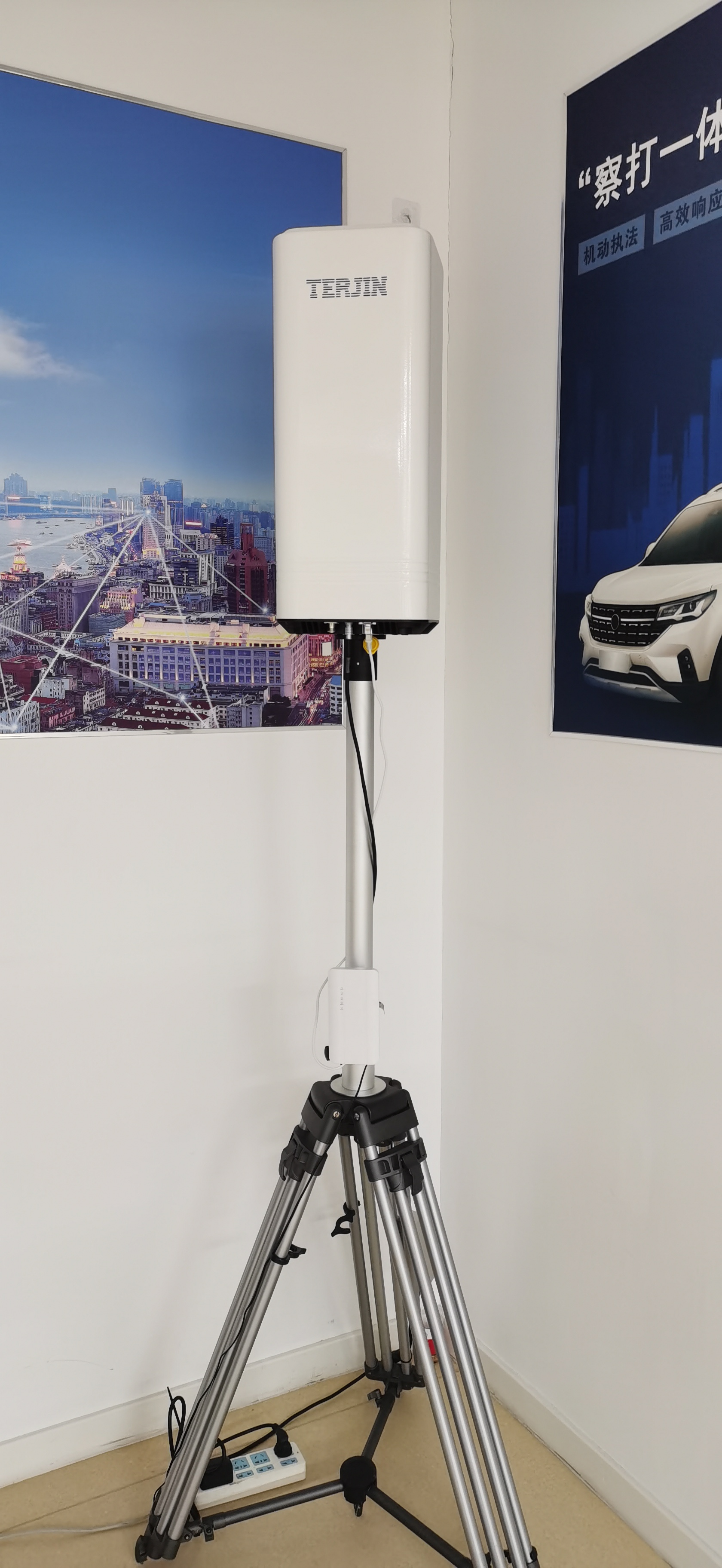

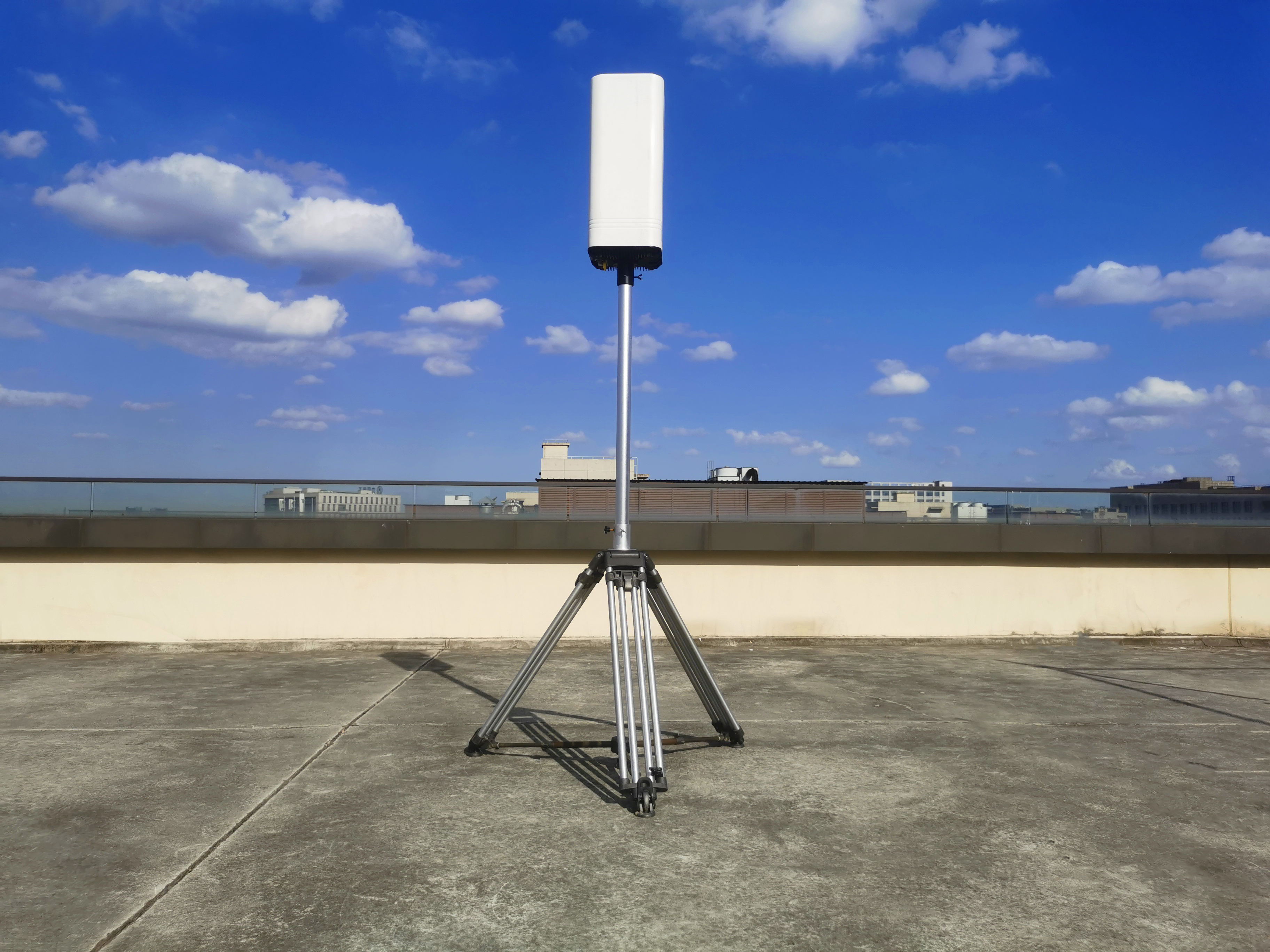

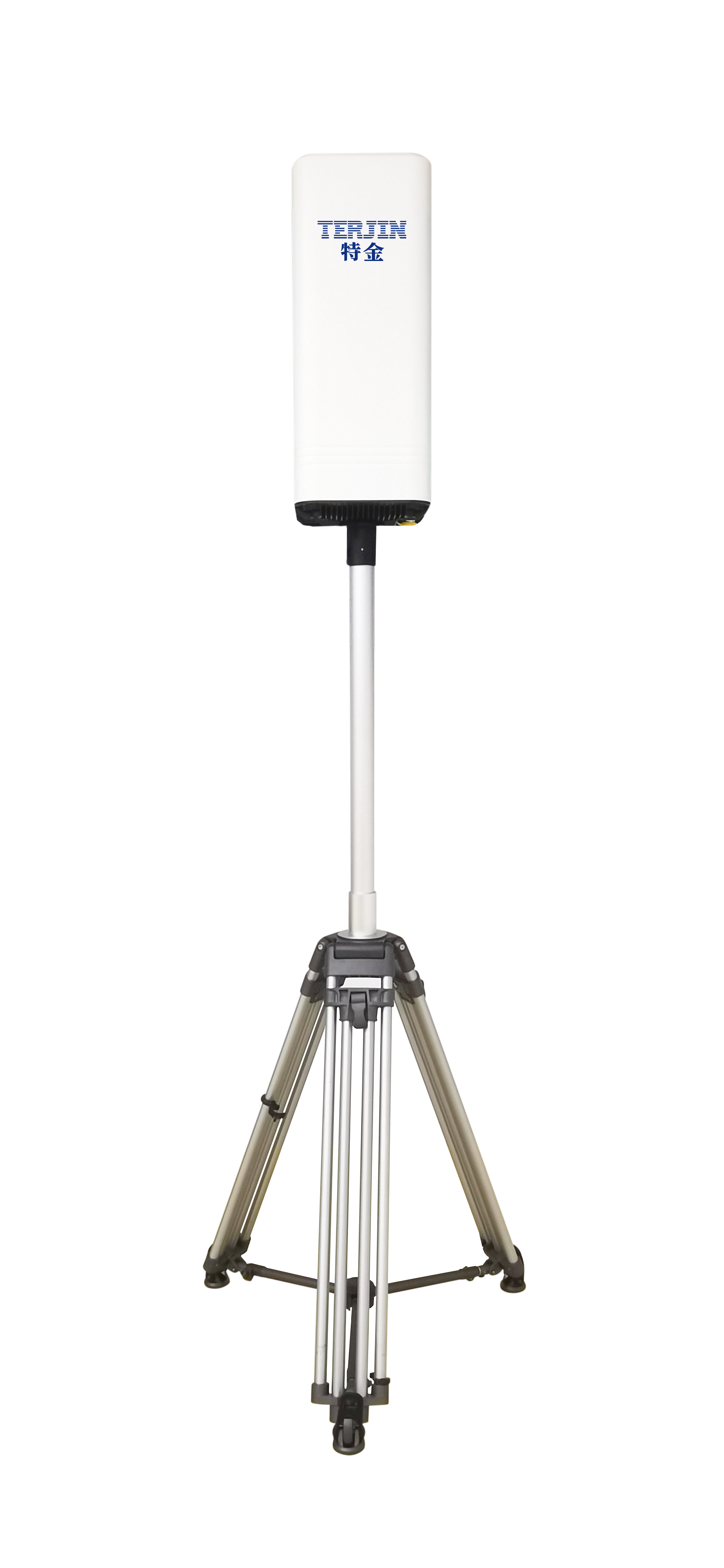

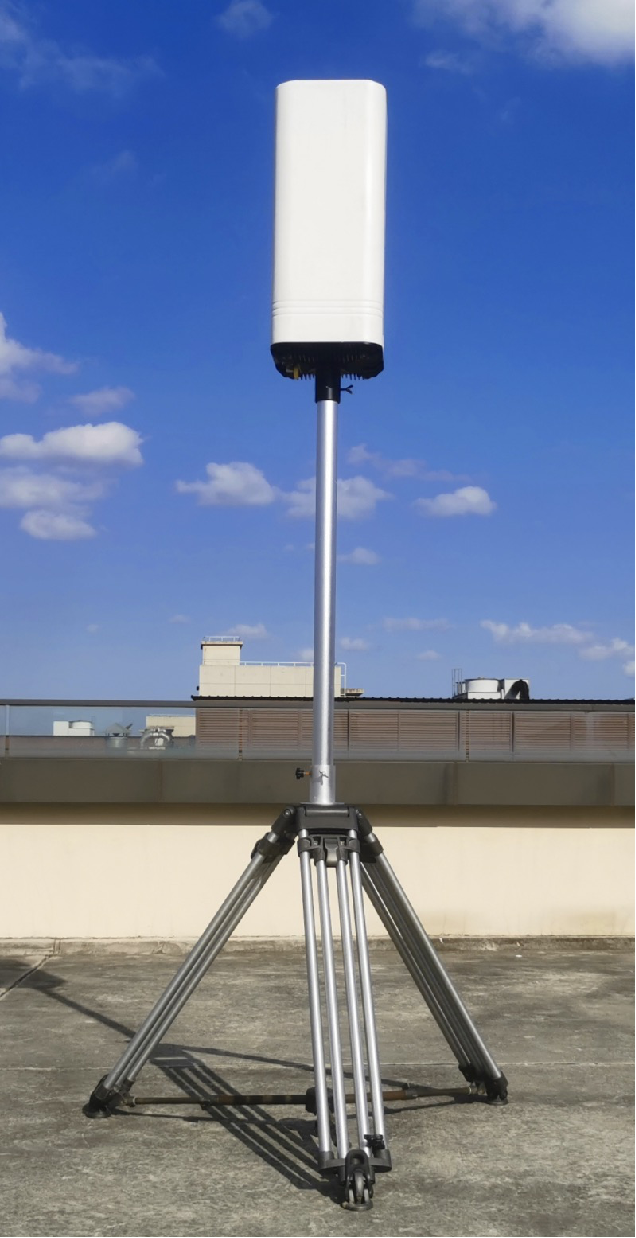

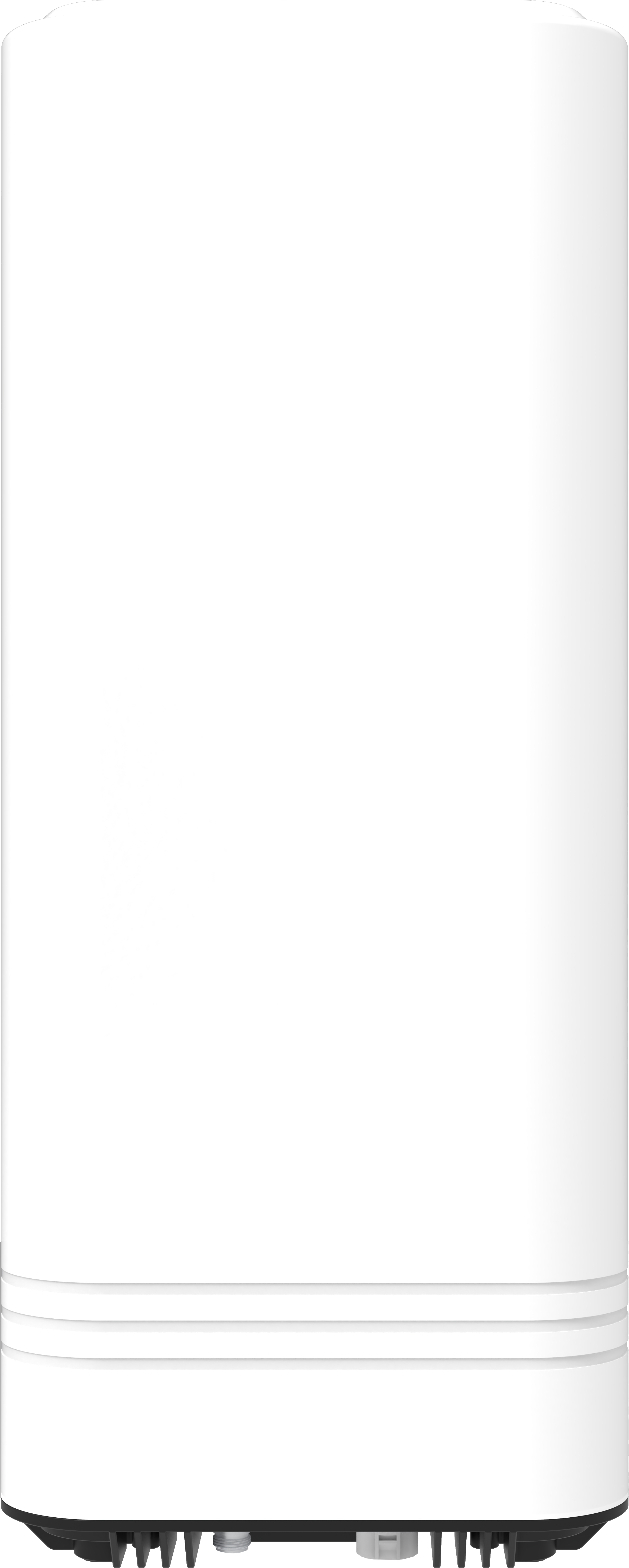

The TERJIN FTD1 Drone Detection Equipment is a system designed to autonomously detect, alert, identify, and locate drones. It uses TDOA technology to enable real-time precise positioning of various drone brands and models when multiple devices are networked.

Key features and functionalities include:

• Comprehensive Detection: Capable of identifying over 800 common drone models (DJI, AUTEL, Dahua, YUNEEC, custom-built, Wi-Fi drones) and providing information such as brand, model, frequency band, and bandwidth.

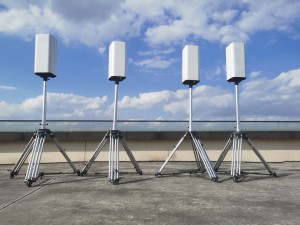

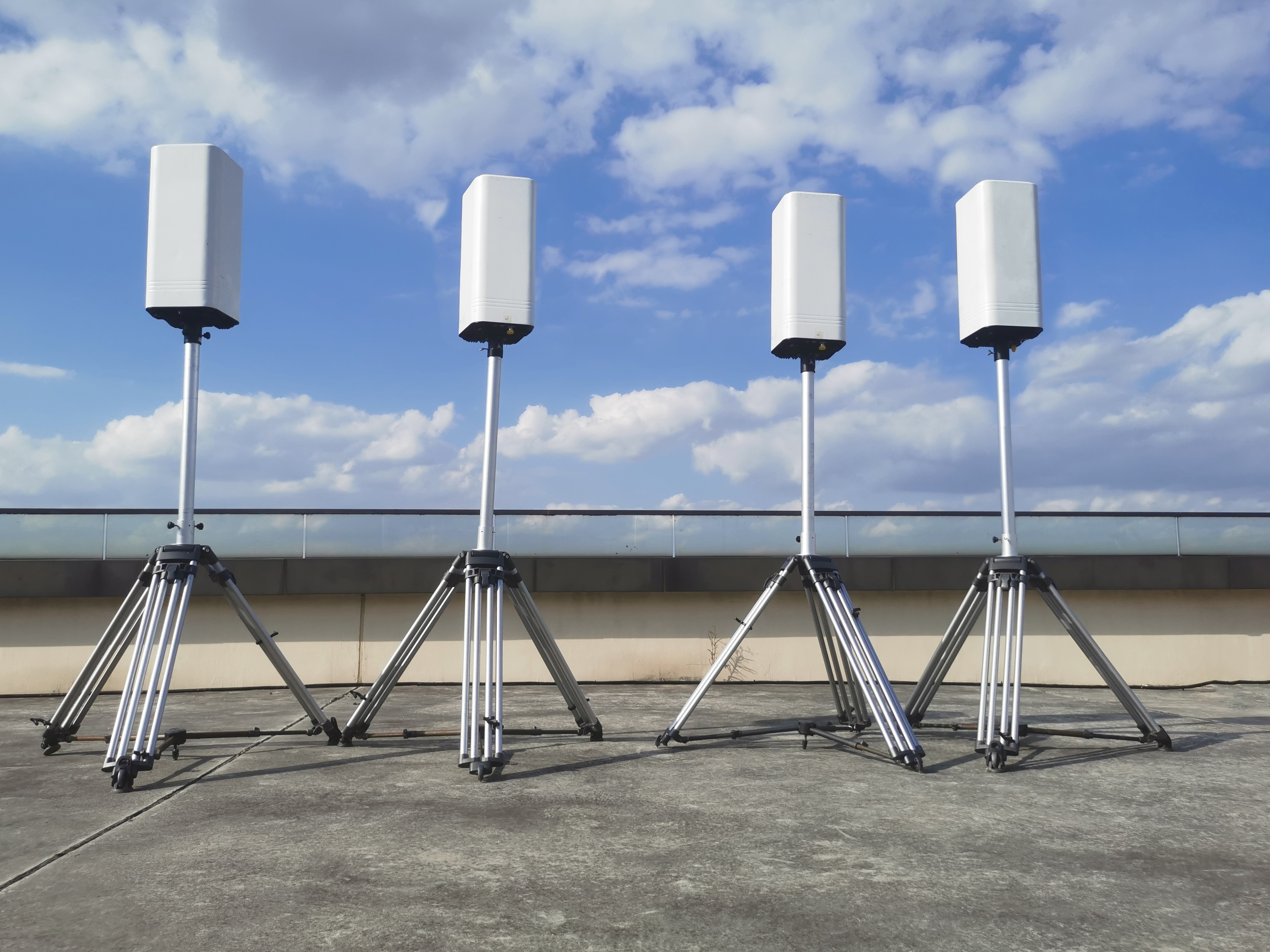

• TDOA Positioning: Networks three or more devices for tracking and positioning various UAVs.
• Multi-target Tracking: Simultaneously locates and tracks multiple UAVs, displaying their flight trajectories.
• UAV Monitoring: Obtains data like serial numbers, models, positions, speed, altitude, take-off/return points, flight paths, and remote controller positions for DJI OcuSync series drones.
• Pilot Positioning: A single device can locate the pilot's position, displaying real-time latitude, longitude, azimuth, and distance.
• Blacklist/Whitelist: Distinguishes between cooperative and non-cooperative UAVs, with options to suppress alarms for trusted drones.
• Intrusion Alert: Triggers audible or visual alarms upon detecting unauthorized UAVs.
• Data Management: Supports trajectory playback, detection logs, data visualization (heatmaps, line graphs), and electronic maps (AMAP, Bing, Google).
• Networking: Connects to a backend management platform for multi-device networking and broad coverage.
• Surveillance-Strike Coordination: Integrates with countermeasure or navigation deception devices.
• Passive Detection: Operates without emitting electromagnetic signals, ensuring no electromagnetic pollution.
• 24/7 Vigilance: Provides continuous operation in all weather conditions and complex electromagnetic environments.

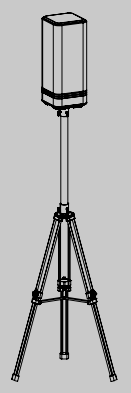

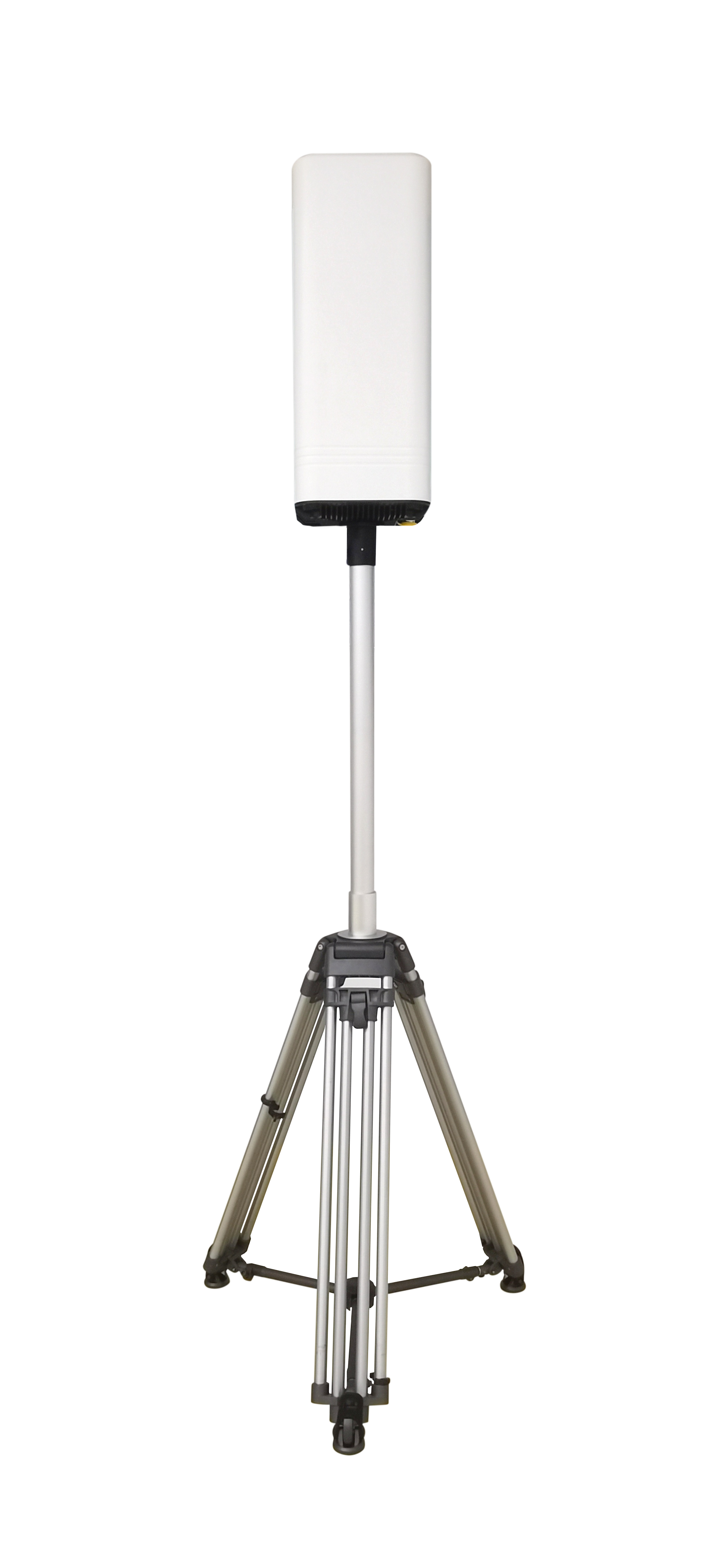

• Integrated Design & Environmental Adaptability: Features a fixed, integrated structure for easy outdoor deployment and continuous operation, with an IP66 protection level and an operating temperature range of -40 to 65°C.

Performance Metrics:

• Detection Frequency Range: 100MHz-6GHz
• Detection Range: 2-6 km (dependent on environmental conditions and drone model)
• Single-Station Positioning Range: 1-3 km (dependent on environmental conditions and drone model)
• Detection Altitude: 0-1000m
• Simultaneously Detectable Targets: >10
• Simultaneous Tracked UAV Trajectories: ≥5 (single decoding), ≥10 (multiple TDOA networking)
• Positioning Error: ≤5m (single decoding), ≤10m (multiple TDOA networking)
• Detection Success Rate: ≥97%
• Recognition Response Time: ≤3s

Mechanical and Electrical Parameters:

• Weight: ≤12kg (excluding power adapter)
• Size: (265mm x 265mm x 660mm) ±2mm
• Total Power Consumption: ≤100W
• Power Supply: 220V AC/12V DC
