| System | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Processor | Embedded processor | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating System | Embedded LINUX | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Internet Protocol | IPv4, DNS, RTSP, RTP, TCP, UDP, SIP | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Keyboard Type | Touch screen QWERTY keyboard | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Basic | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Screen Type | Capacitive screen | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Display | 10 inch LCD | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Screen Resolution | 800(H)×1280(V) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Camera | 1/2.8" 2MP CMOS low illumination dual camera | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Angle of View | H: 94.16°, V: 49.57°, D: 113.65° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Focal Length | 4.0 mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| WDR | 120db | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Noise Reduction | 3D noise reduction | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video Encoding | H.264 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Frame Rate | 50Hz: 60Hz: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Video Bit Rate | H.264: 256Kbps–2048Kbps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Light Compensation | Auto white light | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Day/Night Switch | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Encoding | G.711u | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Input | 1 omnidirectional microphone | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Output | Built-in 1.5 W speaker | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Mode | Full duplex communication | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Enhancement | Echo suppression and cancellation/digital noise reduction | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Audio Bit Rate | 16KHz, 16Bit | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Status Indicator | Card Swiping Indicator | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Function | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Communication Methods | Full digital | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Unlock Mode | Remote/Password/Fingerprint/Face unlock/Card | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Card Reading Type | IC card | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Auto Snapshot | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Information Release | Words can be played on the outdoor station | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Leave Photos and Messages | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Web Configuration | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Performance | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Card Reading Distance | 3cm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Issue Card Locally | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Face Recognition Range | 0.3m–3m | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Face Recognition Configuration | Anti-fake Threshold | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Face Verification Accuracy | >99% | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Face Recognition Speed | ?0.2s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Fingerprint Sensor Type | Capacitive | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Fingerprint Recognition Time | ?1.5s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Housing Material | Metal frame/Tempered glass | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Capacity | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Card Capacity | 100, 000 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Face Image Capacity | 100, 000 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Fingerprint Capacity | 10, 000 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Port | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| RS-485 | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Wiegand | 1 (input or output) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm Input | 2 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm Output | 2 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Output Port | 1, 12V/100mA | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Exit Button | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Door Status Detection | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Lock Control | 1, normally open or closed by default | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Ethernet | 1 RJ45, 1 10M/100M/1000M Ethernet port | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Storage | Micro SD card(up to 64GB reserved for software ) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Tamper Alarm | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| General | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Ingress Protection | IP65 (Apply silica gel to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Password Unlock Mode | User password/public password/duress password | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Color | Gray | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Supply Mode | DC 12V/2A | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Supply | Optional | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Installation Method | Wall mounted | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Certification | CE, FCC, IK, IP | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Accessory | Flush mount plate | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Product Dimensions | 475.8mm×174.8mm×57.3mm (18.73"×6.88"×2.56") | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Protection Grade | IK07; IP65 (Apply silica gel to gaps between the device and the wall.Liquid sodium silicate is recommended. For details, see the quick start guide.) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Working Temperature | -30°C to +60°C (-22°F to +140°F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Working Humidity | 10%RH–90%RH (non-condensing) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Working Altitude | 86kPa–106kPa | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Consumption | ?5W (standby), ?18W (working) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Net Weight | 2.2kg (4.85 lb); Gross Weight 2.67kg (5.89 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

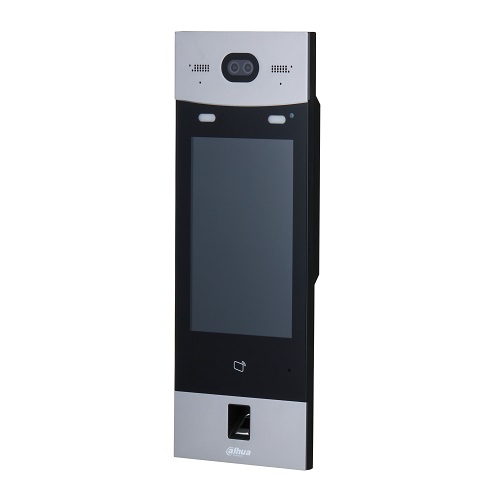

| MODEL | VTO9541D-S2 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
